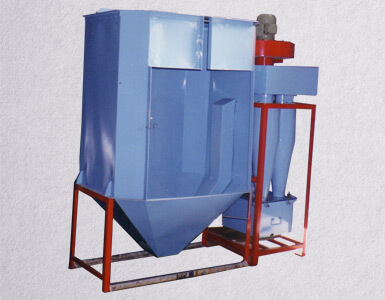

Powder Coating Booth - AI 122

Powder Coating Booth - AI 122

This model is recommened for small jobs upto dimensions 1" x 2" x 2". The spray chamber has octagonal shape due to which the air suckek expands after entering inside it. Hence at the central coating zone the air velocity is minimum and at the walls it is higher. This gives better transfer efficincy, less powder deposition on the walls. The specially shaped trough with sloping sides at the bottom of the booth minimises accumulation of powder which makes it very easy for cleaning and quick colour changes with minimum deadstock of powder.

The multicyclone recovery (3 module ) system ensures extreamely high levels of powder recovery above 98 percent. The 2 H.P. blower meets the regulations of international pollution control norms and maintain the velocity over LEL (Lowest Explosive Level).

All booths are available in Batch / Conveyorised options.

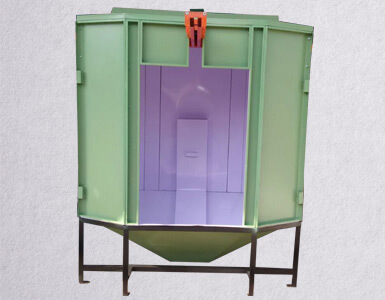

Powder Coating Booth – AI 234

Powder Coating Booth – AI 234

This model is recommended for medium jobs upto dimensions 2" x 3" x 4" to be loaded from front / side however occasional larger jobs can be inserted from the side by opening hinged side doors. The spray chamber has octagonal shape due to whcih the air suckeed expands after entering inside it. Hence at the central coating zone the air velocity is minimum and at the walls it is higher. This gives better transfer efficiency, less powder deposition on the walls.

Ths specially shaped trough with slopping sides at the bottom of the booth minimises accumulation of powder which makes it very easy for cleaning and quick colour changes with minimum deadstock of powder. The multicyclone recovery ( 4 module) system ensures extreamely high levels of powder recovery above 98 percent. The 3 H. P. blower meets the regulations of internationnal pollution control norms and maintain the velocity over LEL (Lowest Explosive Level).

All booth are available in Batch / Conveyorised Options.

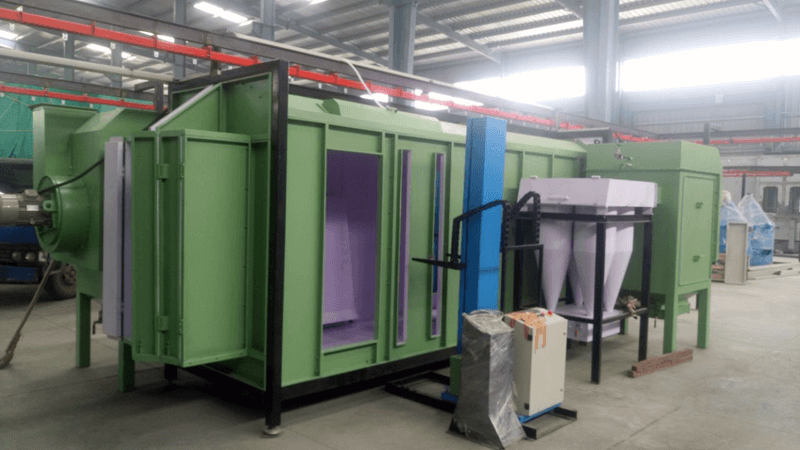

Powder Coating Booth – AI 248

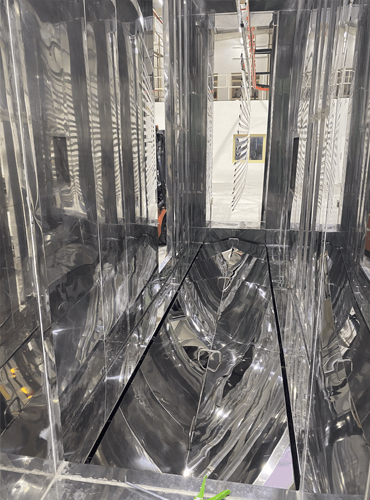

Conveyorised Plant - Liquid / Powder

This model is recommended for large jobs upto dimensions 2" x 4" x 8" to be loaded from the side by opening hinged side doors. The spray chamber has rectangular shape. The article is inserted inside the spray chamber then article remains stationary. One or two operators coat the article from all sides by opening the hinged doors one by one. This reduces the blower capacity requirement.

The specially shaped trough with sloping sides at the bottom of the booth minimises accumulation of powder which makes it very easy for cleaning and quick colour changes with minimum deadstock of powder.

The multicyclone recovery ( 4 module ) system ensures extreamly high levels of powder recovery above 98 percent. The 3 H.P. blower meets the regulations of international pollution control norms and maintain the velocity over LEL ( Lowest Explosive Level). All Booths are available in Batch / Conveyorised option.

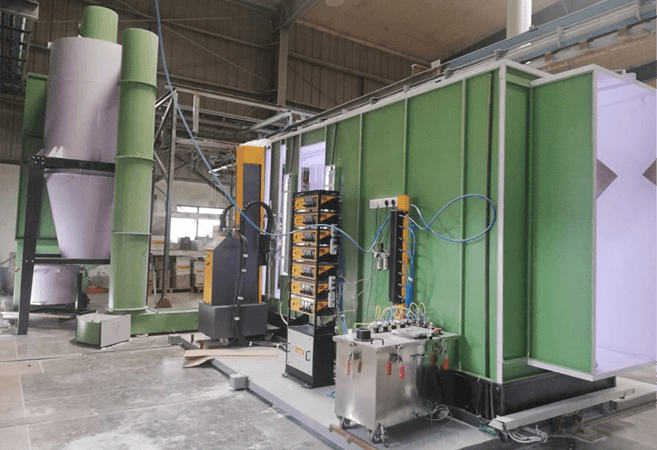

Auto Booth & Reciprocator - Manual Touchup Station, Pneumatic Reciprocator

Conveyorised Plant - Turnkey Paint Shop

Automatic Booths have reciprocator station with two cutouts on opposite sides for reciprocators and recoveries. Two reciprocators carrying Auto Guns operate from Two sides of the articles passing over the Conveyor. Reciprocators are pneumatic or electromechanical type. Stroke height and speed d i.e. number of strokes per minute are adjustable. Multiple guns can be mounted on reciprocators for higher conveyor speeds or larger article heights. Manual back to back touchup stations are provided with auto booths. Roll in Roll off option can be provided for powder coating booth for faster color changes. The material of construction for the booth can be MS or stainless steel for easier cleaning.
